Neo 48x72 Size Water Treatment Water Softener Vessels Plant
Neo 48×72 Water Treatment Water Softener Vessel Plant – Full Description & Specifications
The Neo 48×72 Water Treatment Water Softener Vessel Plant is an ultra-high-capacity water softening system designed to efficiently remove hardness minerals such as calcium and magnesium from water. Hard water can lead to scale buildup in boilers, pipelines, heaters, and appliances, which reduces efficiency and increases maintenance costs. This vessel ensures a continuous supply of soft, scale-free water for large-scale industrial, commercial, and municipal water treatment applications.
Full Description

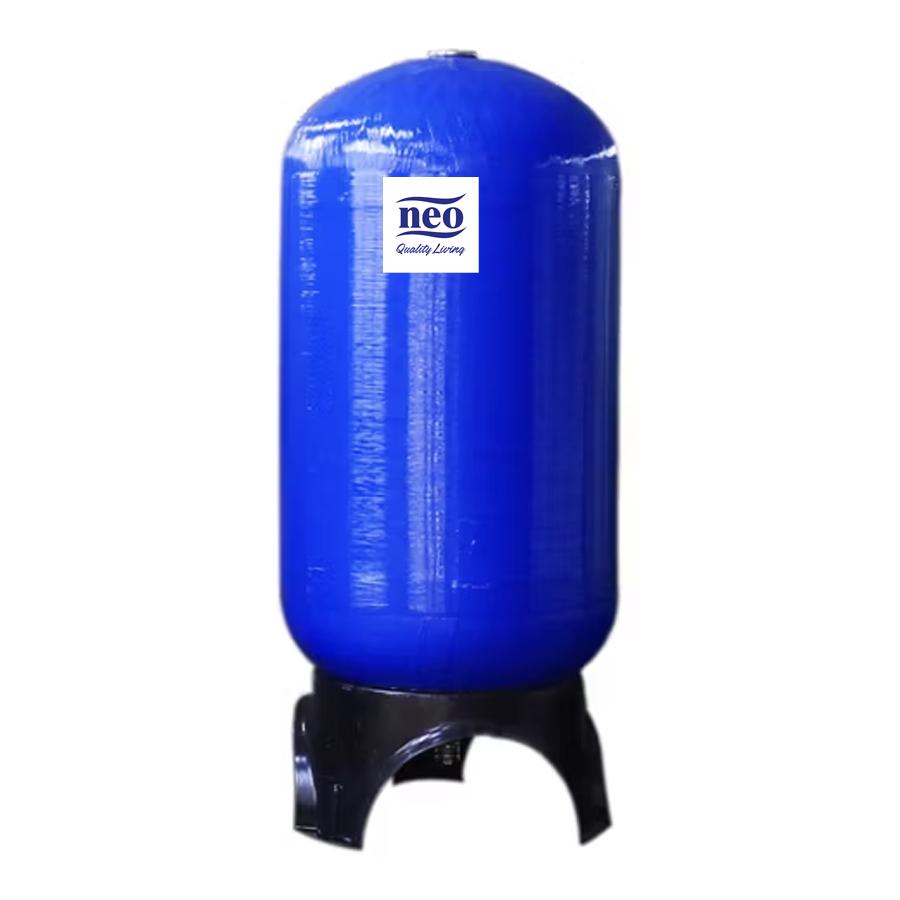

The system features the Neo 48×72 FRP (Fiberglass Reinforced Plastic) vessel, which is extremely durable, corrosion-resistant, lightweight, and capable of withstanding high operating pressures. Its extra-large volume allows for maximum resin media capacity, providing efficient softening even under very high flow rates.
Inside the vessel, premium Indian cation exchange resin is used to remove hardness. During the softening process, calcium and magnesium ions are exchanged with sodium ions, producing soft, scale-free water. The vessel can be equipped with manual or automatic multiport valves, which allow efficient flow control, backwashing, and regeneration cycles for continuous operation.
At Solar Filter Nepal, each Neo 48×72 system is customized based on laboratory water test reports to ensure the correct vessel size, resin type, and system setup for optimal softening efficiency and long-term performance.
The system comes with quality assurances: the FRP vessel has a 3-year replacement guarantee, and the resin media has a 1-year warranty, ensuring reliability and peace of mind for large-scale installations.
This vessel is ideal for applications requiring continuous soft water supply with very high demand, including:
Large hotels, resorts, and restaurants
Hospitals, laboratories, and healthcare facilities
Large apartment complexes and residential communities
Industrial factories and manufacturing plants
Laundry and textile industries
Boiler feed water treatment
Municipal and commercial water treatment plants
Technical Specifications – Neo 48×72 Water Softener Vessel
Feature Specification
Vessel Size 48×72 Inches
Vessel Material FRP – Fiberglass Reinforced Plastic
Diameter 48 Inches (approx. 1,220 mm)
Height 72 Inches (approx. 1,830 mm)
Total Volume 1,400 – 1,500 Liters (approx. 370–396 gallons)
Media Volume ~980 – 1,050 Liters (70% fill)
Media Type High-grade Indian Cation Exchange Resin
Operating Pressure 150 PSI / 10 Bar
Operating Temperature 5°C – 50°C
Top Opening 4-inch Threaded Connection
Recommended Service Flow Rate 12,000 – 14,000 LPH (approx. 53–62 GPM)
Control Valve Manual or Automatic Multiport Valve
Installation Type Vertical Floor-Standing
Warranty 3-year vessel replacement, 1-year resin media
Key Features
Ultra-high-capacity Neo 48×72 FRP vessel for industrial and municipal water softening
Efficient removal of hardness minerals for scale-free water
Durable, corrosion-resistant FRP construction for long-term use
Uses premium Indian resin media for optimal softening efficiency
3-year replacement guarantee on the vessel, 1-year warranty on resin media
Customized system design based on laboratory water test reports for maximum performance
Suitable for industrial, commercial, municipal, and large residential applications
Applications
The Neo 48×72 vessel is ideal for very high-demand water softening needs, including:
Large hotels, resorts, and restaurants
Hospitals, laboratories, and healthcare facilities
Apartment complexes and residential communities
Industrial factories and manufacturing plants
Laundry and textile industries
Boiler feed water systems
Municipal and commercial water treatment plants
At Solar Filter Nepal, we offer wholesale and retail supply of the Neo 48×72 Water Softener Vessel Plant in Kathmandu, Nepal. Our team provides professional system design, installation guidance, and after-sales support, ensuring excellent performance, durability, and customer satisfaction.
