Neo 24×72 Water Treatment Water Softener Vessel Plant
The Neo 24×72 Water Treatment Water Softener Vessel Plant is a premium high-capacity water softening system designed to remove hardness minerals like calcium and magnesium from water. Hard water can cause scale buildup in pipes, boilers, heaters, and household or industrial appliances, leading to reduced efficiency and higher maintenance costs. This system ensures a continuous supply of soft, scale-free water for residential, commercial, and industrial applications.
Full Description

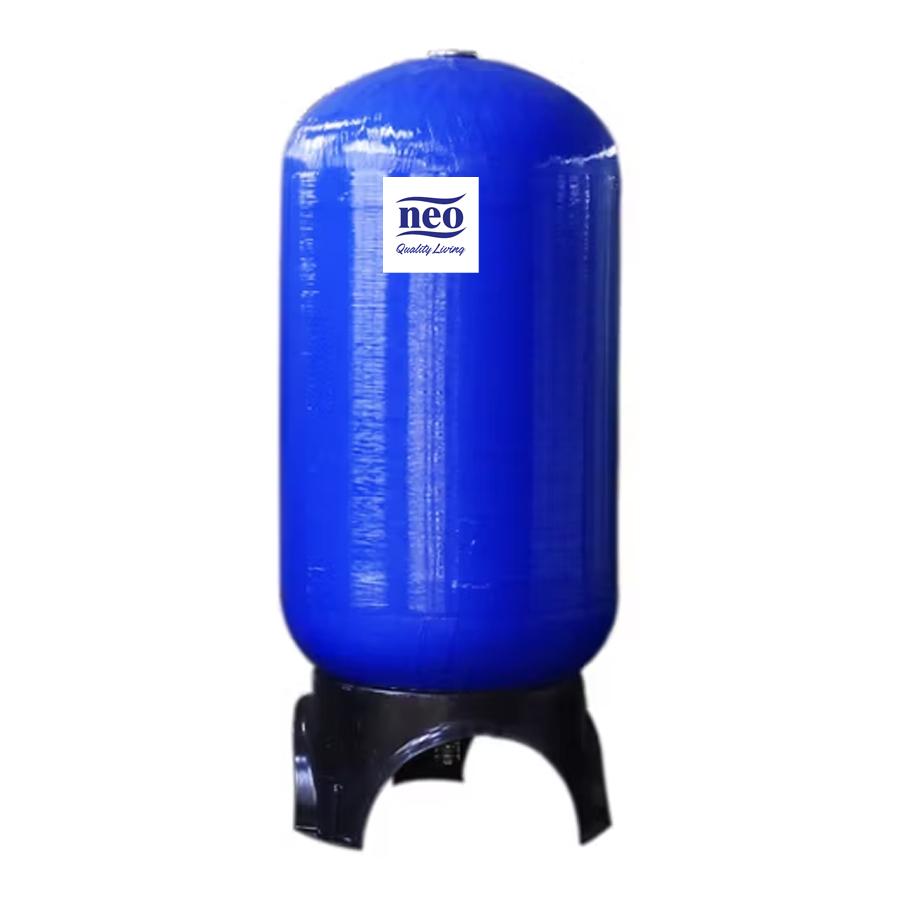

The core of the system is the Neo 24×72 FRP (Fiberglass Reinforced Plastic) pressure vessel, which is durable, corrosion-resistant, lightweight, and capable of handling high operating pressure. Its large size provides maximum media capacity, making it suitable for heavy-duty applications with high water consumption requirements.
Inside the vessel, high-grade Indian cation exchange resin is used to remove hardness from water. During the softening process, calcium and magnesium ions are exchanged with sodium ions, effectively producing soft water that protects pipelines, boilers, heating systems, and appliances from scale.
At Solar Filter Nepal, each system is designed and configured based on laboratory water test reports, ensuring the correct vessel size, media type, and system setup for optimal softening performance. This customized approach guarantees excellent efficiency and long-term reliability.
The Neo 24×72 vessel comes with a 3-year replacement guarantee on the FRP vessel and a 1-year warranty on the resin media, providing assurance of product quality and performance.
This high-capacity water softener vessel is ideal for applications such as:
Hotels, resorts, and restaurants
Hospitals, clinics, and laboratories
Apartment complexes and residential buildings
Industrial factories and manufacturing plants
Laundry and textile industries
Boiler feed water systems
Large commercial water treatment plants
Technical Specifications – Neo 24×72 Water Softener Vessel
Feature Specification
Vessel Size 24×72 Inches
Vessel Material FRP – Fiberglass Reinforced Plastic
Diameter 24 Inches (approx. 610 mm)
Height 72 Inches (approx. 1,830 mm)
Total Volume 450 – 480 Liters (approx. 119–127 gallons)
Media Volume ~320 – 350 Liters (70% fill)
Media Type High-grade Indian Cation Exchange Resin
Operating Pressure 150 PSI / 10 Bar
Operating Temperature 5°C – 50°C
Top Opening 4-inch Threaded Connection
Recommended Flow Rate 5,500 – 6,500 LPH (approx. 24–28 GPM)
Control Valve Manual or Automatic Multiport Valve
Installation Type Vertical Floor-Standing
Warranty 3-year vessel replacement, 1-year resin media
Key Features
High-capacity Neo 24×72 FRP vessel for heavy-duty water softening
Removes hardness minerals efficiently for scale-free water
Durable and corrosion-resistant FRP construction
Uses high-quality Indian resin media for long-lasting performance
3-year replacement guarantee on the vessel, 1-year warranty on media
Customized system based on laboratory water test report for optimal efficiency
Suitable for residential, commercial, and industrial applications
